Produk Detail

Jual Paint Coating Gauge

Paint Coating Gauge untuk mengukur ketebalan cat pada permukaan
Ideal untuk bengkel cat, mobil, kapal, lab manufaktur, dan maintenance tangki

Specifications:
Working Principle : F = Magnetic induction , NF = Eddy Current principle
Range: F = 1250um, NF = 0~1250um
       F = 0~49.2mils , NF = 0~49.21mils
Guaranteed Tolerance(of reading): 0 ~ 850 µm (±3% + 1µm); 850 ~ 1250µm (±5%)
                                  0 ~ 33.46 mils (±3% + 0.039mils) 33.46~49.21mils (±5%)
Accuracy:
0.50um(0.1um)    50~850um(1um)   850~1250um(0.01mm),
0~1.968mils(0.001mils)   1.968~33.46mils(0.01mils)
33.46~49.21mils(0.1mils)
Min.curvature radius: F : 1.5mm, NF : 3mm
Diameter of Min.area F : 7mm NF: 5mm
Min.thickness of substrate: F : 0.5mm NF : 0.3mm
Low range Precision : F : 0.1µm NF : 0.1µm
Working Temperature : 0~40°C (32~104°F)
Working Relative Humidity : 20~90% RH
Size : 110x50x23mm
Weight : 100g

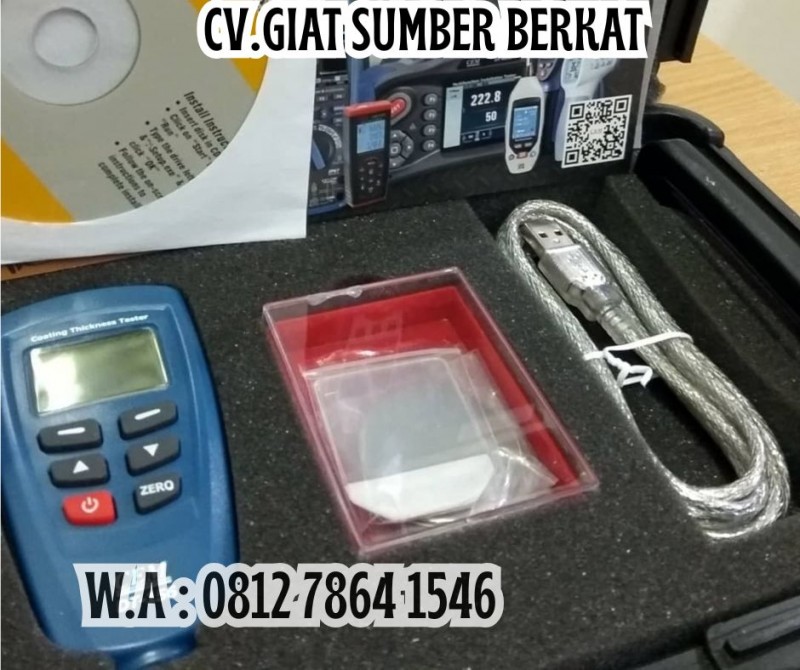

Set Includes:
1 x Paint Coating Thickness Tester
5 x Calibration Foil
1 x Iron Substrate
1 x Aluminum Substrate
1 x Protective Carrying Case
1 x USB cable
1 x CD Software
2 x 1.5V AAA Battery
Instruction Manual

Untuk Informasi, Harga dan Stok
Hubungi Kami di : 081278641546
email : giatsumberberkat@gmail.com
